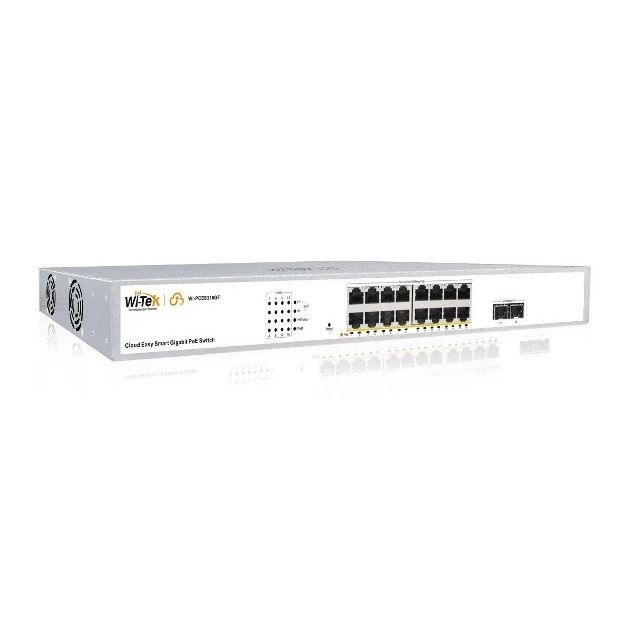

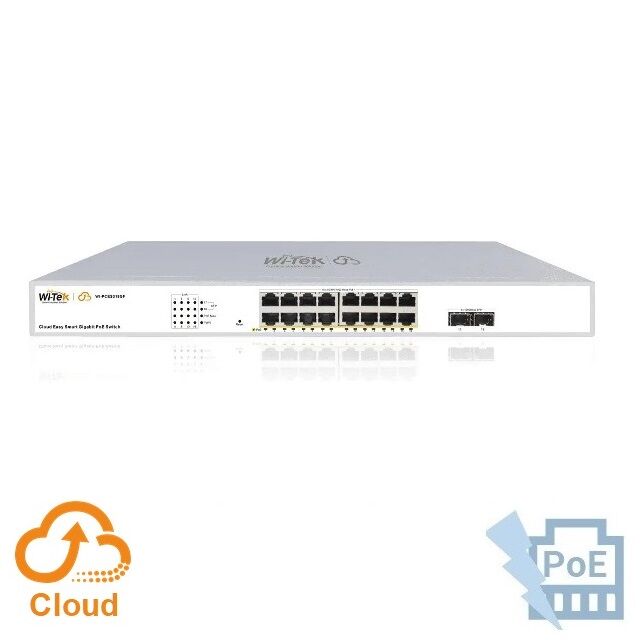

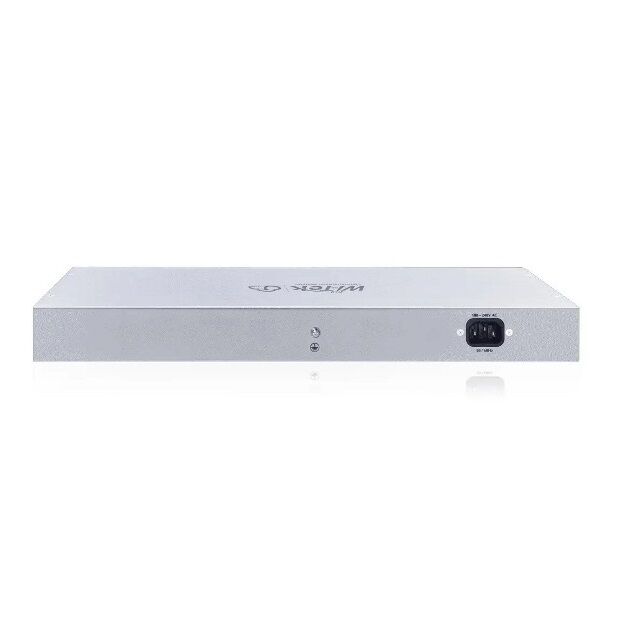

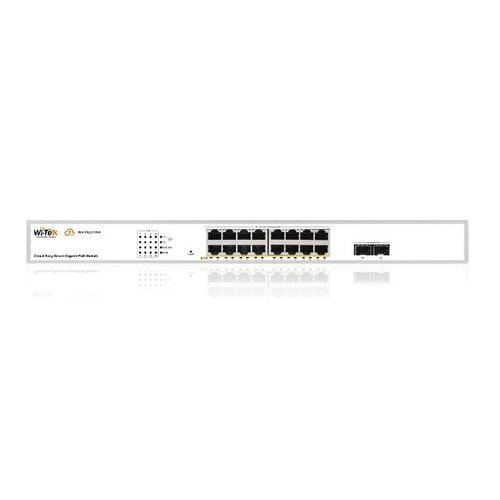

WI-TEK WI-PCES318GF-V2 Switch PoE Smart Cloud 802.3af/at 240 W 16 puertos GE PoE + 2 SFP Uplink

Model

WI-PCES306G

WI-PCES310GF

WI-PCES318GF

WI-PCES326GF

Hardware Features

Interfaces

Downlink Ports

4*10/100/1000 BASE-T RJ45 ports

8*10/100/1000 BASE-T RJ45 ports

16*10/100/1000 BASE-T RJ45 ports

24*10/100/1000 BASE-T RJ45 ports

Uplink Ports

2*10/100/1000Mbps BASE-T RJ45 ports

2*1000Mbps SFP Slots

2*1000Mbps SFP Slots

2*1000Mbps SFP Slots

PoE

PoE Port

Port 1-4: 802.3af/at

PoE Ports

Port 1-8: 802.3af/at

PoE Ports

Port 1-16:  802.3af/at

PoE Ports

Port 1-24:  802.3af/at

PoE Ports

PoE Standard

802.3af/at

PoE Power Supply Type

End-span

PoE Pin Assignment

1/2(+), 3/6(-)

PoE Power

30W Max. for each port,

60W Max. for PoE power budget

30W Max. for each port,

120W  Max. for PoE power budget

30W Max. for each port,

240W Max. for PoE power budget

30W Max. for each port,

370W Max. for PoE power budget

Performance

Memory and Flash

Memory: 128K  DDR3

Flash: 16MB

Switch Property

Standards and Protocols

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1x, IEEE 802.1q, IEEE802.1p, IEEE802.3af, IEEE802.3at

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1x, IEEE 802.1q, IEEE 802.1p, IEEE802.3af, IEEE802.3at

IEEE 802.3, IEEE 802.3u,

IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1x, IEEE802.1q, IEEE802.1p, IEEE802.3af, IEEE802.3at

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1x, IEEE802.1q, IEEE 802.1p, IEEE802.3af, IEEE802.3at

Forwardng Mode

Store and Forward

Switching Capacity

12 Gbps

20 Gbps

36 Gbps

52 Gbps

Packet Forwarding Rate

8.93 Mpps

14.88 Mpps

26.78 Mpps

38.68 Mpps

MAC Address Table

8k

Packet Buffer Memory

4.1Mbit

Jumbo Frame

9 kB

Power Supply

lnput Power

AC 100-240V, 50/60Hz

Power Consumption

Idle: 5W

100%  Traffic Rate with PoE:

65 W

Idle: 10W

100%  Traffic Rate with PoE:

130 W

Idle: 10W

100%  Traffic Rate with PoE:

250 W

Idle: 12W

100%  Traffic Rate with PoE:

382  W

Physical Characteristics

LED Indicators

PWR Indicator:

On: the device power on is normal

Off: the device is power off or failed

Link Indicator:

Off: No device is connected to the corresponding port.

On: Indicates the link through that port is successfully established

Blinking: Indicates that the Switch is actively sending or receiving data over that port.

PoE Indicator:

Off: No PoE powered device

(PD) connected.

On: There is a PoE PD connected to be port, which supply power successfully. Blinking: Indicates the port

is abnormal.

PWR Indicator:

On: the device power on is normal

Off: the device is power off or failed

Link Indicator:

Off: No device is connected to the corresponding port.

On: Indicates the link through that port is successfully established

Blinking: Indicates that the Switch is actively sending or receiving data over that port.

PoE Indicator:

Off: No PoE powered device (PD) connected.

On: There is a PoE PD connected to be port, which supply power successfully. Blinking: Indicates the port is abnormal.

SFP Indicator:

On: port connected

Off: Port disconnected. Blinking:Data transmission

Buttons

Hold for >5 sec. to restore factory default.

Fan Quantity

Fanless

1

2

2

Dimensions (W*D*H)

168*94*32mm

220*150*44mm

440*207*44mm

440*207*44mm

Weight

Net Weight: 0.52kg

Net Weight: 1.24kg

Net Weight: 2.4kg

Net Weight: 2.78kg

Package Weight: 0.83kg

Package Weight: 1.84kg

Package Weight: 3.09kg

Package Weight: 3.46kg

Installation

Desktop

Rack-Mounted

Rack-Mounted

Rack-Mounted

Environmental

Reliability

Surge

Immunity

Common mode ±4kV Differential mode ±2kV

ESD Protection

Contact discharge ±6kV Air discharge ±8kV

Operating Temperature

-10 ℃ ~ 50℃(14℉ ~ 122℉)

Storage Temperature

-40℃ ~ 70 ℃(-40℉ ~ 158℉)

Operating Humidity

10% ～ 90% RH no condensation

Storage Humidity

5 ~ 90% RH non-condensing

Certification

Certification

CE, FCC, RoHS, UKCA, RCM

Software Features

Switch  Settings

IP Settings

User  Management

Firmware  Upgrade

Reset

Reboot

Monitoring

Port  Statistics

Cable  Diagnostics

Loop  Guard

Ping Test

Switch  Settings

Port  Mirroring

Port  lsolation

Port  Reboot

Jumbo Frame

Static MAC

Filter MAC

Search MAC

MAC List

DHCP Snooping

QoS

Port  Rate

Storm  Control

Port/802.1p/DSCP  priority

VLAN Settings

Port-based VLAN

VLAN Range:  1-4094

PoE Settings

PoE port  disable

PD Alive

Extend  PoE

ONVIF

Automatically identify  IP cameras that  support ONVIF

Wi-Tek Cloud  manage

Cloud  management and  APP management
