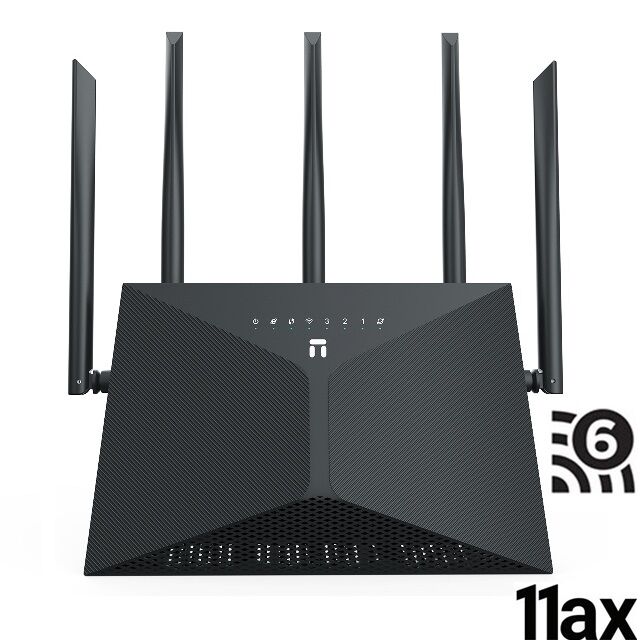

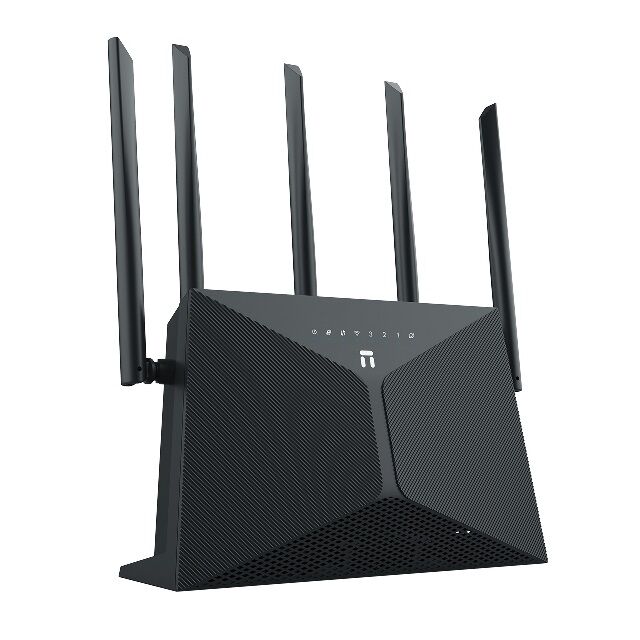

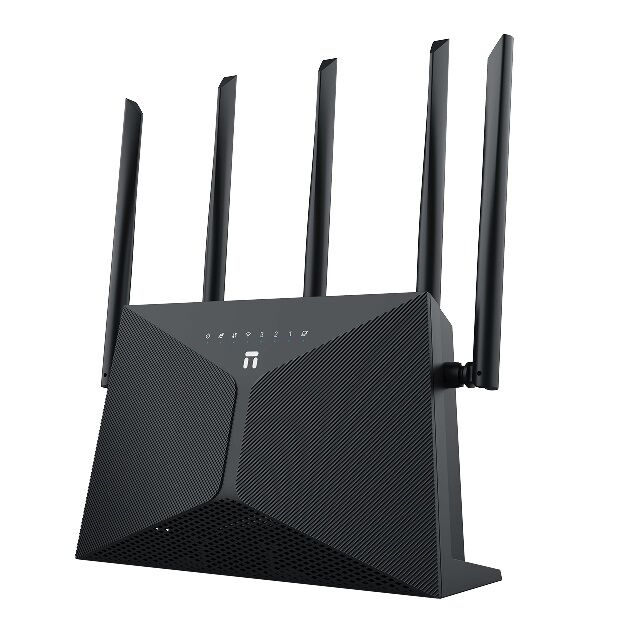

El enrutador inalámbrico de doble banda Stonet AX3000 es un dispositivo 3 en 1 que combina las funciones de un enrutador NAT de 4 puertos de alta velocidad y un punto de acceso inalámbrico de tecnología WiFi6 ó AX. Está diseñado para Proporcionar a los usuarios finales una solución integral para navegar y compartir alta velocidad de acceso a Internet a través de una red cableada/inalámbrica. La tecnología Wi-Fi6 802.11AX, te ofrecerá conexión de doble banda simultánea con velocidades inalámbricas de 2-402 Mbps en banda de 5 GHz y 574 Mbps en banda de 2,4 GHz, ideal para descargas más rápidas, juegos en línea, llamadas por Internet y HD vídeo transmitido en vivo. Todos los puertos son Gigabit, tanto para WAN como LAN.
Especificaciones Técnicas STONET NX30
Standards
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
WiFi Speeds
AX 3000
5 GHz: 2402 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range
3 Bedroom Houses
5×Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more
directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand
WiFi range
High-Power FEM
Improves transmission power to strengthen signal coverage
WiFi Capacity
Dual-Band
Allocate devices to different bands for optimal performance
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
Working Modes Router Mode, Access Point Mode
HARDWARE
Processor 1GHz Dual-Core CPU
Main Chipset ZX279128R+MT7916+MT7976D
DDR/FLASH 256MB/128MB

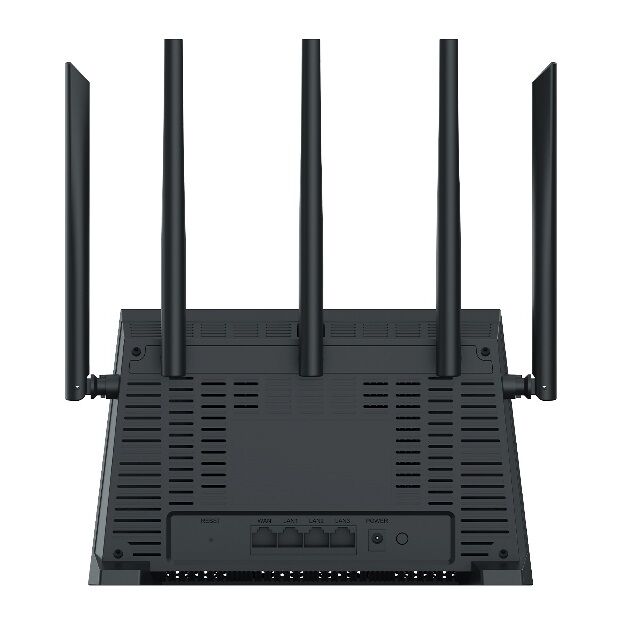

Interface 1x Gigabit WAN Port /3x Gigabit LAN Ports
Buttons WPS/MESH, Reset
Power 12V1.5A
SECURITY
WiFi Encryption WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)
Network Security SPI Firewall, Access Control, IP & MAC Binding, Application Layer
Gateway
Guest Network 2×5 GHz Guest Network /2×2.4 GHz Guest Network
SOFTWARE
Protocols IPv4, IPv6
Parental Controls URL Filtering, Time Controls
WAN Types Dynamic IP, Static IP, PPPoE, PPTP, L2TP
Quality of Service QoS by Device
NAT Forwarding Port Forwarding, Port Triggering, DMZ, UPnP
IPTV IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
DHCP Address Reservation, DHCP Client List, Server
Management
Web based Configuration (HTTP), Remote Management, Telnet
Management, Tr069, Tr143, Tr181, Tr098, SNMP, Web Based Firmware
Upgrade, CWMP, Diagnostic Tools.
DDNS NO-IP, DynDNS
PHYSICAL
Dimensions(W×D×H) 9.3×5.7×2.0 in (236.0×144.0×50.0 mm)
Package Contents
1x NX30
1x Power Adapter
1x RJ45 Ethernet Cable
1x Quick Installation Guide
OTHER
System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or another JavaScript-enabled browser
Cable Subscription with an internet service provider (for internet access)
Certifications FCC, CE, EAC, UkrSEPRO
Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉ )
Storage Temperature: -40℃~70℃ (-40℉ ~158℉ )
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power
CE:
<20dBm (2.4 GHz)
<23dBm (5.15 GHz~5.25 GHz)
FCC:
<30dBm (2.4 GHz & 5.15 GHz~5.825 GHz
4 Streams Connect your devices to more bandwidth
