WI-PCMS310GF-OV2

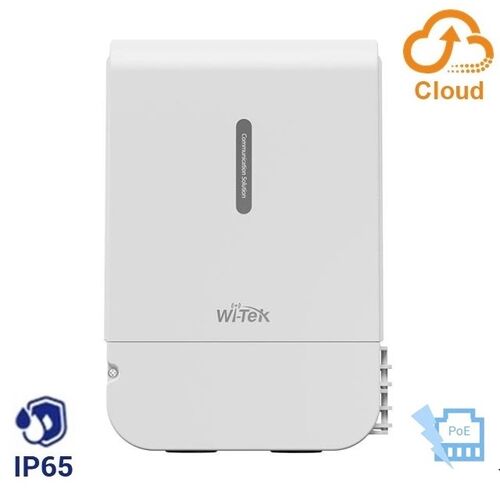

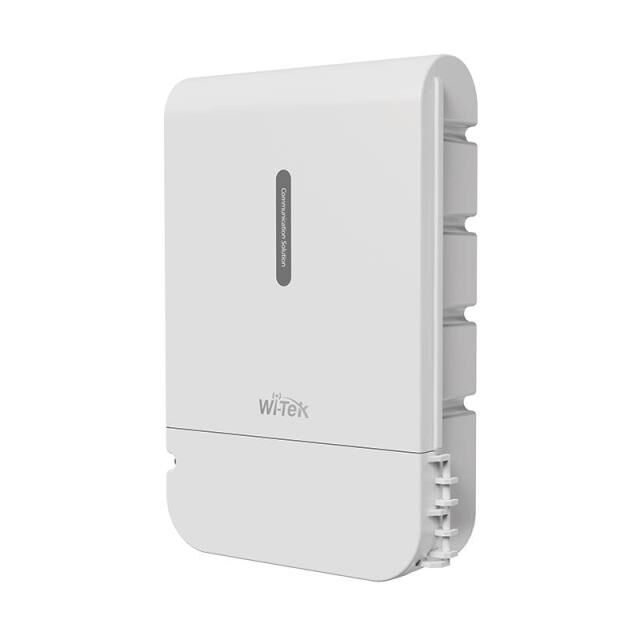

WI-TEK WI-PCMS310GF-OV2 Switch PoE Exterior IP65 802.3af/at/bt 110 W 8 puertos GE PoE + 2 SFP Uplink) Gestionable L2+ manejado por Wi-Tek Cloud
Switch Wi-Tek WI-PCMS310GF-OV2 PoE (Power Over Ethernet)
8 puertos Giga Ethernet PoE 48V 802.3af/at/bt, hasta 90W (puertos 1-2), total 110W
2 Slot SFP para Up-link (módulos no incluidos)
Formato Exterior normalizado IP65
Soporta temperaturas de trabajo desde -30℃ a 60℃
Puerto de alimentación interno AC 110~240V 50/60HZ
Protección anti descargas 6 KV, rayos y ESD de 8 KV
Gestionable L2+: VLAN, QoS, STP, etc…
Gestionable en la nube WiTek totalmente gratuita
El conmutador PoE administrado de Wi-Tek WI-PCMS310GF-OV2 Gigabit de capa 2 en la nube para exteriores Wi-Tek proporciona resistencia al agua y al polvo IP65 y una gran capacidad de funciones, como VLAN 802.1Q, enlace de puertos, QoS, protocolo de descubrimiento de cámara IP ONVIF, etc.
El Puerto IP-MAC Enlace (IMPB), dispone de funciones como DHCP Snooping y Access Control List (ACL) pueden impedir la transmisión tormentas, ataques ARP. La calidad de servicio (QoS, L2+) proporciona capacidades mejoradas de gestión del tráfico para que sus datos se muevan más fluidamente y más rápido.
Admite la gestión de la nube Wi-Tek, proporcionando una gestión más eficiente y remota simple. Este Switch PoE de exterior es adecuado para la instalación de equipos CCTV y Puntos de acceso al aire libre.
Especificaciones técnicas WI-PCMS310GF-OV2
|
| Model | WI-PCMS310GF-O | ||
|
| Hardware Version | V2 | ||
|
| Interfaces | |||
|
| Downlink Port | 8*10/100/1000Mbps RJ45 PoE Ports | ||
|
| Uplink Port | 2*100/1000Mbps SFP Slots | ||
|
| PoE | |||
|
| PoE Port | Port 1-8 | ||
|
|
PoE Standard | Port 1-2: 802.3af/at/bt Port 3-8: 802.3af/at | ||
|
| PoE Pin Assignment |
1/2(-), 3/6(+) and 4/5(+), 7/8(-) | ||
|
|
PoE Power | 90W max for port 1-2, 30W max for port 3-8; 110W max. (PoE power budget) | ||
|
| Performance | |||
|
|
Memory and Flash | Memory: 128MB Flash: 32MB | ||
|
| Switch Property | |||
|
| Standards and Protocols | IEEE 802.3, IEEE 802.1d, IEEE 802.3u, IEEE802.1W IEEE802.3ab, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.1x, IEEE802.3at, IEEE802.1q, IEEE802.3bt, IEEE802.1p | ||
|
| Forwarding Mode | Store and Forward | ||
|
| Switching Capacity | 20Gbps | ||
|
| Packet Forwarding Rate | 14.88Mpps | ||
|
| MAC Address Table | 8k | ||
|
| Packet Buffer Memory | 4.1Mbit | ||
|
| Jumbo Frame | 10000Byte | ||
|
| Power Consumption | Idle: 5W 100% Traffic Rate with PoE: 115W | ||
|
| Physical Characteristics | |||
|
| LED Indicators |
PWR(Green) On: The device power on is normal Off: The device is power o ffor failed SYS(Green) Blinking: The Device system is operating normally Off: Device system or power connection abnormality PoE(Orange) On: PoE enabled Off: PoE disabled Link(Orange) On: Port connected Off: Port disconnected Blinking: Data transmission | ||
|
| Buttons | |||
|
| Reset | Hold for>5 sec, to restore factory default | ||
|
| Fan Quantity | Fanless | ||
|
| Switch Dimensions | 314*210*89 mm | ||
|
| Package Dimensions | 405*253*97 mm | ||
|
|
Weight | Net Weight: 1.42 kg | ||
|
| Package Weight: 2.35 kg | |||
|

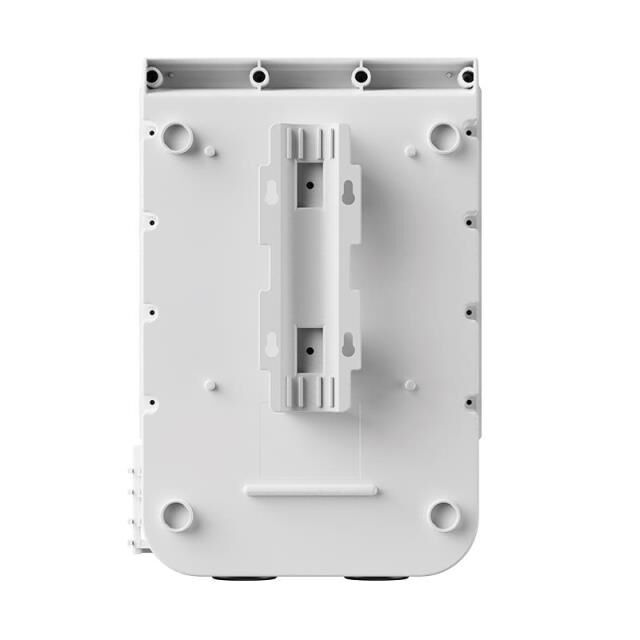

| Installation | Wall-mounted, Pole-mounted | ||
|
| Environmental | |||
|
| Reliability | Surge Immunity | IEC 61000-4-5 Common mode 4kV Differential mode 2kV | |
|
| ESD Protection | IEC 61000-4-2 Contact discharge 6kV Air discharge 8kV | ||
|
|
MTBF |
99651H | ||
|
| Operating Environment | -30℃-60℃ (-22℉-122℉); 10-90% RH non-condensing | ||
|
| Storage Environment | -40℃-70℃ (-40℉-158℉); 5–90% RH non-condensing | ||
|
| Certification | |||
|
| Certification | CE, FCC, RoHS, UKCA, RCM | ||
|
| Software Features | |||
|
|
QoS | 8 priority queues | ||
|
| 802.1p CoS/DSCP priority | |||
|
| Queue scheduling(SP (Strict Priority);WRR (Weighted Round Robin);SP+WRR | |||
|
| Bandwidth Control(Port/Flow based Rating Limiting) | |||
|
| Policy Config | |||
|
| Class-Map Config | |||
|
| Policy-Map Config | |||
|
| Policy Mark Config | |||
|
| Policy Bandwidth | |||
|
| Policy VLAN | |||
|
|
L2+ | IPv4/IPv6 Interfaces | ||
|
| Static Routing(512 static routes） | |||
|
| Static ARP | |||
|
| 8K ARP Entries | |||
|
| ARP timeout | |||
|
| Gratuitous ARP | |||
|
| DHCP Server | |||
|
| DHCP Relay | |||
|
| DHCP L2 Relay | |||
|
|
Link Aggregation | Static link aggregation | ||
|
| 802.3ad LACP | |||
|
| Up to 8 aggregation groups and up to 8 ports per group | |||
|
|
Spanning Tree Protocol | 802.1d STP | ||
|
| 802.1w RSTP | |||
|
| 802.1s MSTP | |||
|
| STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect | |||
|
Loopback Detection | Port-based | |||
| VLAN based | ||||
|
Flow Control | 802.3x Flow Control | |||
| HOL Blocking Prevention | ||||
|
Mirroring | Port Mirroring | |||
| CPU Mirroring | ||||
| One-to-One | ||||
| Many-to-One | ||||
| Tx/Rx/Both | ||||
|
L2 Multicast | Supports IPv4/IPv6 IGMP groups | |||
| IGMP Snooping | ||||
| IGMP v1/v2/v3 Snooping | ||||
| Immediately-leave | ||||
| IGMP Snooping Querier | ||||
| IGMP Authentication | ||||
| IGMP Proxy | ||||
| MVR | ||||
| MLD Snooping | ||||
| MLD v1/v2 Snooping | ||||
| Immediately-leave | ||||
| MLD Snooping Querier | ||||
| Static Group Config | ||||
| Limited IP Multicast | ||||
| Multicast Filtering | ||||
|
VLAN | VLAN Group | |||
| Max. 4K VLAN Groups | ||||
| 802.1Q tag VLAN | ||||
| MAC VLAN | ||||
| Protocol VLAN | ||||
| GVRP | ||||
| Voice VLAN | ||||
| Port-Based QinQ | ||||
| Tunnel TPID（0x8100，0x9100，0x9200，Protocol ID） | ||||
| OUI-Based VLAN | ||||
|
Access Control List | MAC ACL | |||
| Source MAC | ||||
| Destination MAC | ||||
| Packet Type（Untagged-eth2，Untagged-802.3，Tagged-eth2，Tagged-802.3） | ||||
| VLAN ID | ||||
| Ether Type | ||||
| IP ACL | ||||
| Source IP | ||||
| Destination IP | ||||
| Fragment Packet | ||||
| IP Protocol | ||||
| IP Precedence | ||||
| TCP/UDP Port | ||||
| DSCP/IP TOS | ||||
| Combined ACL | ||||
| IPv6 ACL | ||||
| icmp/tcp/udp | ||||
| Mirroring | ||||
| Attached Direction(Ingress/Traffic-statistic) | ||||
| QoS Remark | ||||
| ACL apply to Port/VLAN | ||||
| Time-based ACL | ||||
| Security | IP-MAC-Port Binding | |||
| DHCP Snooping | ||||
| ARP Inspection | ||||
| IPv4 secure-port | ||||
| DHCPv6 Snooping | ||||
| snooping remote-id | ||||
| snooping subscriber-id | ||||
| IPv6 security-ra | ||||
| DoS Defend | ||||
| DHCP Filter | ||||
| Static/Dynamic Port Security | ||||
| Broadcast/Multicast/Unicast Storm Control | ||||
| kbps/pps control mode | ||||
| 802.1X | ||||
| Port base authentication | ||||
| Mac base authentication | ||||
| VLAN Assignment | ||||
| Guest VLAN | ||||
| Support RADIUS authentication and accountability | ||||
| AAA (including TACACS+) | ||||
| Port Isolation | ||||
| Secure web management through HTTPS with SSLv3/TLS 1.2 | ||||
| Secure Command Line Interface (CLI) management with SSHv1/SSHv2 | ||||
| IP/Port/MAC-based access control | ||||
|
IPv6 | IPv6 Dual IPv4/IPv6 | |||
| Multicast Listener Discovery (MLD) Snooping | ||||
| IPv6 ACL | ||||
| IPv6 Interface | ||||
| Static IPv6 Routing | ||||
| IPv6 neighbor discovery (ND) | ||||
| Path maximum transmission unit (MTU) discovery | ||||
| Internet Control Message Protocol (ICMP) version 6 | ||||
| TCPv6/UDPv6 | ||||
| IPv6 applications | ||||
| DHCPv6 Client | ||||
|
IPv6 | Ping(v6) | |||
| Tracert(v6) | ||||
| Telnet (v6) | ||||
| IPv6 SNMP | ||||
| IPv6 SSH | ||||
| IPv6 SSL | ||||
| Http/Https | ||||
|
Advanced Features | 802.3ah Ethernet Link OAM | |||
| ERPS | ||||
| Cloud Management | ||||
| ONVIF (ONVIF Detection,ONVIF Server(NLM)) | ||||
| Batch Firmware Upgrading | ||||
| Intelligent Network Monitoring Abnormal Event Warnings | ||||
| Automatic Device Discovery | ||||
| Support Remote Management | ||||
| Support Cloud VLAN Configuration | ||||
| Support Topology Display | ||||
| Support Cloud Control Port Configuration | ||||
|
Management Features | Web-based GUI | |||
| Command Line Interface (CLI) through console port, telnet | ||||
| SNMPv1/v2c/v3 | ||||
| Trap/Inform | ||||
| RMON (1, 2, 3, 9 groups) | ||||
| DHCP/BOOTP Client | ||||
| 802.1ab LLDP/LLDP-MED | ||||
|
Management Features | CPU Monitoring | |||
| Cable Diagnostics | ||||
| EEE | ||||
| Password Recovery | ||||
| SNTP | ||||
| System Log | ||||
|
System | Ping | |||
| Traceroute | ||||
| Firmware Upgrade | ||||
| DDMI | ||||
