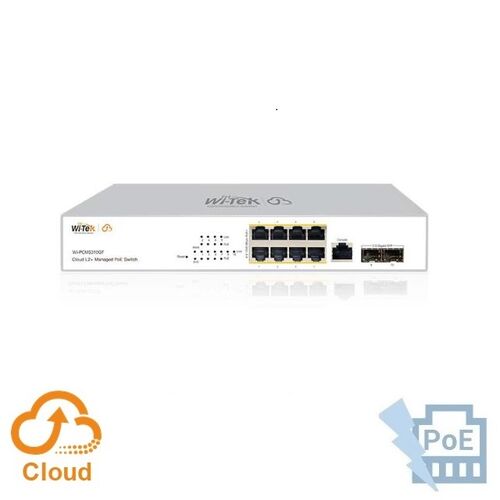

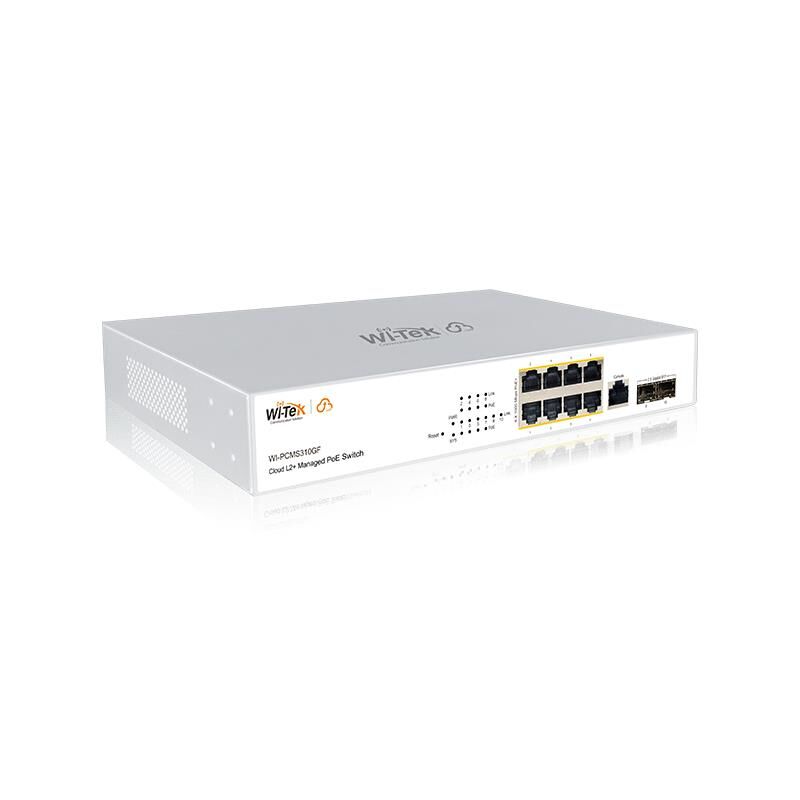

El conmutador PoE gestionable WI-PCMS310GF-v2 de Wi-Tek ofrece funciones robustas y de alto rendimiento de capa 2 y capa 2+, como enrutamiento estático, ERPS, servidor DHCP, QoS de nivel empresarial y capacidades avanzadas de políticas de seguridad.
Las funciones de enlace IP-MAC-Puerto (IMPB) y listas de control de acceso (ACL) protegen contra tormentas de difusión, ataques ARP y de denegación de servicio (DoS), entre otras. La calidad de servicio (QoS, de capa 2 a capa 4) proporciona capacidades mejoradas de gestión del tráfico para una transferencia de datos más fluida y rápida.
La gestión mediante la aplicación en la nube del WI-PCMS310GF-v2 ofrece un método de gestión remota más eficiente, sencillo, seguro y fácil de usar. Admite despliegue inteligente, conexión automática en red, alarmas por anomalías y otras funciones, lo que facilita su gestión y mantenimiento.
El switch PoE gestionado Wi-Tek WI-PCMS310GF-v2 Cloud L2+ es una solución de red fiable y de alto rendimiento con amplias funciones de gestión, lo que lo convierte en la opción perfecta para pequeñas y medianas empresas.
Especificaciones técnicas WI-PCMS310GF-v2

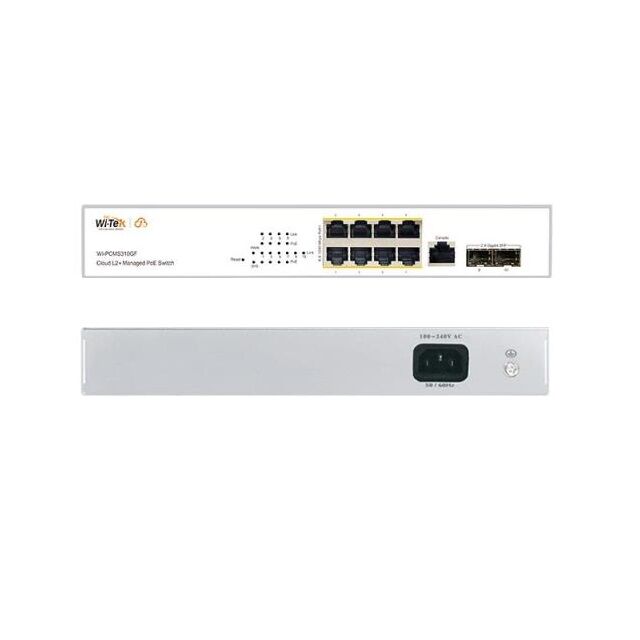

Interface
8*10/100/1000Mbps RJ45 Ports
2 Gigabit SFP Slots
1 Console port
Interface Port Standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1x, IEEE 802.1q, IEEE 802.1p, IEEE 802.1d, IEEE 802.1w, IEEE 802.3ad, IEEE802.3af, IEEE802.3at
Memory and Flash
128MB DDR3, 32MB Flash
PoE Standard
PoE 802.3 af/at
PoE Ports
8, up to 30W
PoE Power Budget
140W
Power Supply
AC 100-240V 120W
Standby Power Consumption
14.2W
Switching Capacity
20Gbps
Packet Forwarding Rate
14.88Mpps
Jumbo Frame
10KB
MAC Address Table
8K, Auto-learning, Auto-aging
Fan Quantity
Fanless
RJ45 PoE Power Supply
Mode A 1/2(+)3/6(-)
Dimensions (W x D x H)
280*181*44mm
Net weight/gross weight (kg)
1.72Kg
Reset Button
Press and hold the reset button until all port indicators are on, indicating that the reset is successful.
LED indicator
PWR: Off: No Power supply; On: The switch is powered on
SYS: Blinking: The Device system is operating normally
Off: Device system or power connection abnormality
1~8 port: Off: The network is not connected
On: A 10/100/1000M network device is connected．
Blinking: Data is being transferred．
9~10 port: Off: No device is connected to the corresponding port.
On: Indicates the link through that port is successfully established at 1000Mbps.
Blink: Indicates that the Switch is actively sending or receiving data over that port.
Protection Level
Surge Protection: Differential mode ±4KV, Common mode ±6KV
Electrostatic Standard: Contact ±6KV, Air ±8KV
Protection class: IP65
Transmission Method
Store— Forward
Installation
Rack or Desktop
Environment
Operating temperature/humidity: -10°C ~ 50°C; 10%～90% RH no condensation
Storage temperature/humidity: -40～+70°C; 10%～90% RH no condensation
Certification
CE, FCC, RoHS, UKCA
Spanning Tree
IEEE 802.1D -STP
IEEE 802.1w -RSTP
IEEE 802.1s -MSTP
BPDU Guard
STP Root Guard
Loop Detection
VLAN
Management VLAN
Private VLAN
Voice VLAN
Monitor VLAN
Q-in-Q
Protocol-Based VLAN
MAC-Based VLAN
Port
LACP
Static
EEE
Jumbo Frame
Error-Disable
Port mirroring (One-to-One Many-to-One Tx/Rx/Both)
Link Aggregation (Up to 8 aggregation groups and up to 8 ports per group)
Port Isolation
Security
IEEE802.1x AAA
ACL support L2+/L3/L4 IPv6 ACL
Dynamic ARP Protection
Broadcast Storm
RADIUS/TACACS+
RADIUS Authentication (RFC2138)
SSH v1.5/v2.0
Anti-DDoS Attack
DHCP Snooping
QoS
Ipv4 QoS (QCEs)
Ipv6 QoS (QCEs)
Priority Algorithm (WRR,Absolute Priority,DSCP & CS)
Class of Service (Port-Based,802.1p, CoS, DSCP, IP Priority, TCP/UDP IPv4/IPv6)
Bandwidth (Input /Output)
L2 Multicast
IGMP Snooping v1/v2/v3
MLD Snooping v1/v2
MVR
IPV6
Ipv6/IPv4
Ipv6 Web/SSL
Ipv6 SNTP
Ipv6 Telnet/SSH
Ipv6 Ping/Traceroute
Ipv6 TFTP
Ipv6 RADIUS/TACACS+
Ipv6 SNMP
Management
SNMP (v1, v2c, v3)
RMON ( 1, 2, 3 & 9 )
Firmware Upgrade
Configuration Export/import
DHCP Option 82
System Log Supports Event/Error Log
Manage Access Control (Console Port, SNMP, HTTP/HTTPS, Telnet,SSH)
LLDP (IEEE802.1AB)
LLDP-MED
UDLD
DNS Client
Traceroute
Ping
DDMI
NTP/ SNTP (RFC2030)
Advanced Features
ONVIF (ONVIF Detection, ONVIF Server (NLM))
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Automatic Device Discovery
Support Cloud Management
Support Remote Management
Support Cloud VLAN Configuration
Support Topology Display
